현우형의 블로그에서 알게 된 Webpages as Graphs 라는 자바 애플릿이다.

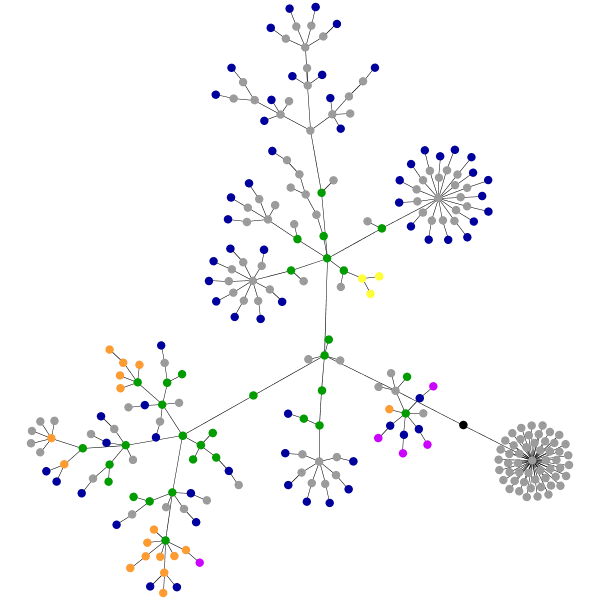

내 블로그 주소를 입력하니 아래와 같은 그림이 그려진다.

각각의 색깔이 의미하는 것은:

파랑: 링크 (the A tag)
빨강: 테이블 (TABLE, TR and TD tags)
초록: DIV 태그
보라: 이미지 (the IMG tag)
노랑: 폼 (FORM, INPUT, TEXTAREA, SELECT and OPTION tags)
주황: 줄바꿈과 인용 (BR, P, and BLOCKQUOTE tags)
검정색: HTML 태그, 최상위 노드
회색: 나머지 태그

이 자바 애플릿의 소스코드는 아래와 같다. 저작자는 http://www.aharef.info.

////////////////////////////////////////////////////////////
//
// A word of caution: This code can be optimized – I made it in quite a hurry.
// A large chunk is from an example from Traer Physics.
//
// Feel free to use / modify this code however you wish.
// I would be happy if you would make a reference to the www.aharef.info site!
//
// Oh, and yes, don’t forget to check out my alter ego art project, www.onethousandpaintings.com
//
////////////////////////////////////////////////////////////

import traer.physics.*;
import traer.animation.*;
import java.util.Iterator;
import java.util.ArrayList;
import java.util.HashMap;
import processing.net.*;
import org.htmlparser.*;
import org.htmlparser.util.*;
import org.htmlparser.filters.*;
import org.htmlparser.nodes.*;

int totalNumberOfNodes = 0;
ArrayList elements = new ArrayList();
ArrayList parents = new ArrayList();
int nodesAdded = 0;
int maxDegree = 0;
HashMap particleNodeLookup = new HashMap();
HashMap particleInfoLookup = new HashMap();
ParticleSystem physics;
Smoother3D centroid;

// MAKE SURE YOU CHANGE THIS! I might change this site in the future.
// Simply point to a site on your own server that gets the html from any other site.
private String urlPath = “http://www.aharef.info/static/htmlgraph/getDataFromURL.php?URL=”;
private String content;

float NODE_SIZE = 30;
float EDGE_LENGTH = 50;
float EDGE_STRENGTH = 0.2;
float SPACER_STRENGTH = 2000;

final String GRAY = “155,155,155”;
final String BLUE = “0,0,155”;
final String ORANGE = “255,155,51”;
final String YELLOW = “255,255,51”;
final String RED = “255,0,0”;
final String GREEN = “0,155,0”;
final String VIOLET = “204,0,255”;
final String BLACK = “0,0,0”;

void setup() {
size(750, 750);
// if you want to run it locally from within processing, comment the two following lines, and define urlPath as http://www.whateveryoursite.com
String urlFromForm = param(“urlFromForm”);
urlPath += urlFromForm;
smooth();
framerate(24);
strokeWeight(2);
ellipseMode(CENTER);
physics = new ParticleSystem( 0, 0.25 );
centroid = new Smoother3D( 0.0, 0.0, 1.0,0.8 );
initialize();
this.getDataFromClient();
}

void getDataFromClient() {
try {
org.htmlparser.Parser ps = new org.htmlparser.Parser ();
ps.setURL(urlPath);
OrFilter orf = new OrFilter();
NodeFilter[] nfls = new NodeFilter[1];
nfls[0] = new TagNameFilter(“html”);
orf.setPredicates(nfls);
NodeList nList = ps.parse(orf);
Node node = nList.elementAt (0);
this.parseTree(node);
EDGE_STRENGTH = (1.0 / maxDegree) * 5;
if (EDGE_STRENGTH > 0.2) EDGE_STRENGTH = 0.2;
}
catch (Exception e) {
e.printStackTrace();
}
}

void initialize() {
physics.clear();
}

void parseTree(Node node) {
int degree = 0;
if (node == null) return;
String nodeText = node.getText();
if (node instanceof TagNode && !((TagNode)node).isEndTag()) {
//println(((TagNode)node).getTagName());
totalNumberOfNodes++;
elements.add(node);
parents.add(((TagNode)node).getParent());
}
NodeList children = node.getChildren();
if (children == null) return;
SimpleNodeIterator iter = children.elements();
while(iter.hasMoreNodes()) {
Node child = iter.nextNode();
if (child instanceof TagNode && !((TagNode)child).isEndTag()) degree++;
parseTree(child);
}
if (degree > maxDegree) maxDegree = degree;
}

Particle addNode(Particle q) {
Particle p = physics.makeParticle();
if (q == null) return p;
addSpacersToNode( p, q );
makeEdgeBetween( p, q );
float randomX = (float)((Math.random() * 0.5) + 0.5);
if (Math.random() < 0.5) randomX *= -1;
float randomY = (float)((Math.random() * 0.5) + 0.5);
if (Math.random() < 0.5) randomY *= -1;
p.moveTo( q.position().x() +randomX, q.position().y() + randomY, 0 );
return p;
}

void draw() {
//uncomment this if you want your network saved as pdfs
//beginRecord(PDF, “frameimage-####.pdf”);
if (nodesAdded < totalNumberOfNodes) {
this.addNodesToGraph();
}
else {
if (EDGE_STRENGTH < 0.05) EDGE_STRENGTH += 0.0001; } physics.tick( 1.0 ); if (physics.numberOfParticles() > 1) {
updateCentroid();
}
centroid.tick();
background(255);
translate(width/2, height/2);
scale(centroid.z());
translate( -centroid.x(), -centroid.y() );
drawNetwork();
//uncomment this if you want your network saved as pdfs
//endRecord();
}

void addNodesToGraph() {
Particle newParticle;
TagNode tagNodeToAdd = (TagNode)elements.get(nodesAdded);
Node parentNode = (Node)parents.get(nodesAdded);
if (parentNode == null) {
// this is the html element
newParticle = addNode(null);
}
else {
Particle parentParticle = (Particle)particleNodeLookup.get(parentNode);
newParticle = addNode(parentParticle);
}
particleNodeLookup.put(tagNodeToAdd,newParticle);
String nodeColor = GRAY;
if (tagNodeToAdd.getTagName().equalsIgnoreCase(“a”)) nodeColor = BLUE;
else if (tagNodeToAdd.getTagName().equalsIgnoreCase(“div”)) nodeColor = GREEN;
else if (tagNodeToAdd.getTagName().equalsIgnoreCase(“html”)) nodeColor = BLACK;
else if (tagNodeToAdd.getTagName().equalsIgnoreCase(“tr”)) nodeColor = RED;
else if (tagNodeToAdd.getTagName().equalsIgnoreCase(“td”)) nodeColor = RED;
else if (tagNodeToAdd.getTagName().equalsIgnoreCase(“table”)) nodeColor = RED;
else if (tagNodeToAdd.getTagName().equalsIgnoreCase(“br”)) nodeColor = ORANGE;
else if (tagNodeToAdd.getTagName().equalsIgnoreCase(“p”)) nodeColor = ORANGE;
else if (tagNodeToAdd.getTagName().equalsIgnoreCase(“blockquote”)) nodeColor = ORANGE;
else if (tagNodeToAdd.getTagName().equalsIgnoreCase(“img”)) nodeColor = VIOLET;
else if (tagNodeToAdd.getTagName().equalsIgnoreCase(“form”)) nodeColor = YELLOW;
else if (tagNodeToAdd.getTagName().equalsIgnoreCase(“input”)) nodeColor = YELLOW;
else if (tagNodeToAdd.getTagName().equalsIgnoreCase(“textarea”)) nodeColor = YELLOW;
else if (tagNodeToAdd.getTagName().equalsIgnoreCase(“select”)) nodeColor = YELLOW;
else if (tagNodeToAdd.getTagName().equalsIgnoreCase(“option”)) nodeColor = YELLOW;
particleInfoLookup.put(newParticle,nodeColor);
nodesAdded++;
//println(nodesAdded + ” of ” + totalNumberOfNodes + ” (” + tagNodeToAdd.getTagName() + “)”);
}

void drawNetwork() {
// draw edges
stroke( 0 );
beginShape( LINES );
for ( int i = 0; i < physics.numberOfSprings(); ++i ){
Spring e = physics.getSpring( i );
Particle a = e.getOneEnd();
Particle b = e.getTheOtherEnd();
vertex( a.position().x(), a.position().y() );
vertex( b.position().x(), b.position().y() );
}
endShape();
// draw vertices
noStroke();
for ( int i = 0; i < physics.numberOfParticles(); ++i ) {
Particle v = physics.getParticle(i);
String info = (String)(particleInfoLookup.get(v));
if (info != null) {
String[] infos = info.split(“,”);
fill(Integer.parseInt(infos[0]),Integer.parseInt(infos[1]),Integer.parseInt(infos[2]));
}
else {
fill(155);
}
ellipse( v.position().x(), v.position().y(), NODE_SIZE, NODE_SIZE );
}

}

void updateCentroid() {
float
xMax = Float.NEGATIVE_INFINITY,
xMin = Float.POSITIVE_INFINITY,
yMin = Float.POSITIVE_INFINITY,
yMax = Float.NEGATIVE_INFINITY;

for (int i = 0; i < physics.numberOfParticles(); ++i) { Particle p = physics.getParticle(i); xMax = max(xMax, p.position().x()); xMin = min(xMin, p.position().x()); yMin = min(yMin, p.position().y()); yMax = max(yMax, p.position().y()); } float deltaX = xMax-xMin; float deltaY = yMax-yMin; if ( deltaY > deltaX ) {
centroid.setTarget(xMin + 0.5*deltaX, yMin + 0.5*deltaY, height/(deltaY+50));
}
else {
centroid.setTarget(xMin + 0.5*deltaX, yMin + 0.5*deltaY, width/(deltaX+50));
}
}

void addSpacersToNode( Particle p, Particle r ) {
for ( int i = 0; i < physics.numberOfParticles(); ++i ) {
Particle q = physics.getParticle(i);
if (p != q && p != r) {
physics.makeAttraction(p, q, -SPACER_STRENGTH, 20);
}
}
}

void makeEdgeBetween(Particle a, Particle b) {
physics.makeSpring( a, b, EDGE_STRENGTH, EDGE_STRENGTH, EDGE_LENGTH );
}
